RPS pumps
RPS pumps use single-phase shaded-pole motors, designed to be very compact and dedicated to small machine tools, ceramic and glass processes, and for all those cases in which liquids or coolants must be moved.

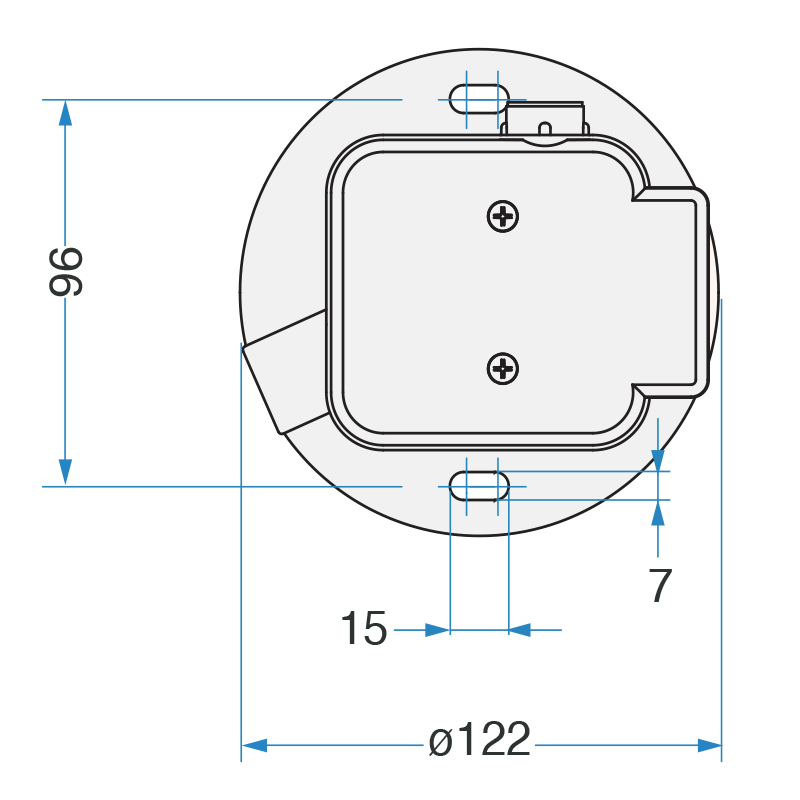

Available FIXING PLATES
⌀ 122
Fixing plates
Available CABLE
BIPOLAR
More technical specifications:
Category: CENTRIFUGAL-PUMP with immersed vertical axis.
Windings: Shaded poles single-phase motor with Class F winding.
Motor body: Motor covered by plastic shell in PA66 30% glass fiber.
Protection: IP 54 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: NSK and SKF (long-life) self-lubricant bearings or equivalent, in semi-rigid noise-damping housings.
Motor shaft: AISI 303 stainless steel shaft.
Connections: Motor power cord 1.100 mm long without plug.
Immersion: Motor-driven pump with immersed vertical axis without clamping devices.
Fastening parts: INOX steel or anti-oxidant materials.
Special versions: Motors with voltages and frequencies according to the customer’s specific requirements can be supplied.
Note: PATENTED device. Read the instruction booklet for correct set up and use.
