RIO series
RIO series is a very compact solution suitable for poorly ventilated installations. Its encapsulated design grants protection from dust and dampness even in the most particular applications.
Available FIXING PLATES

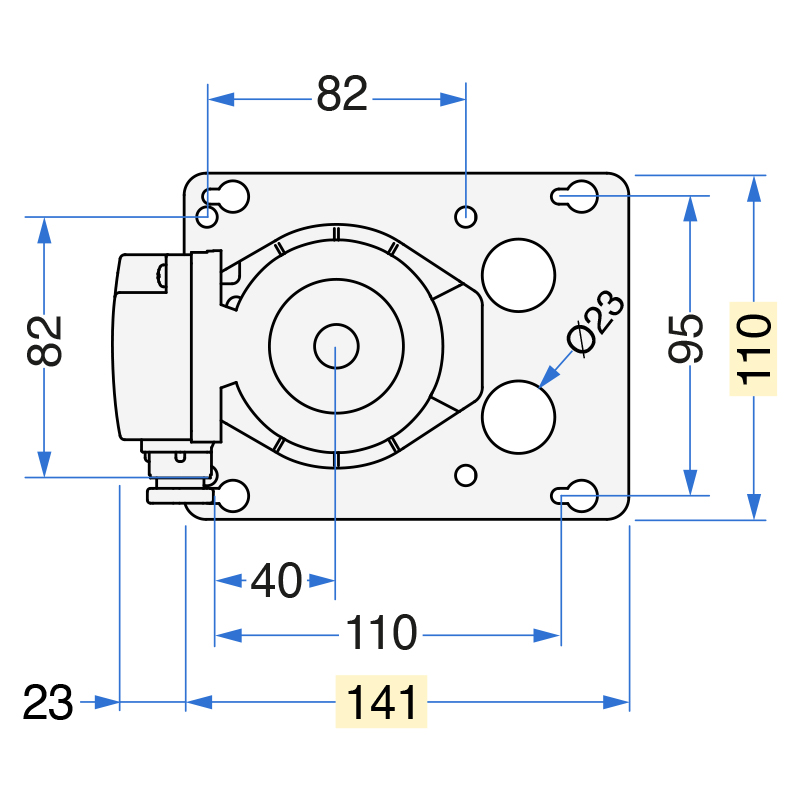

141×110 mm
Fixing plates

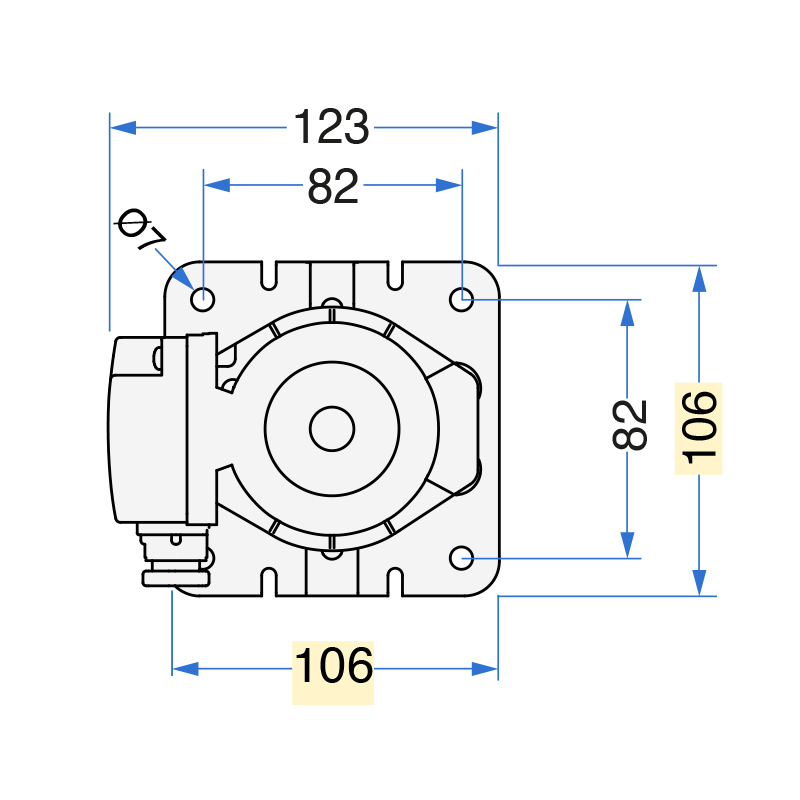

106×106 mm
Fixing plates

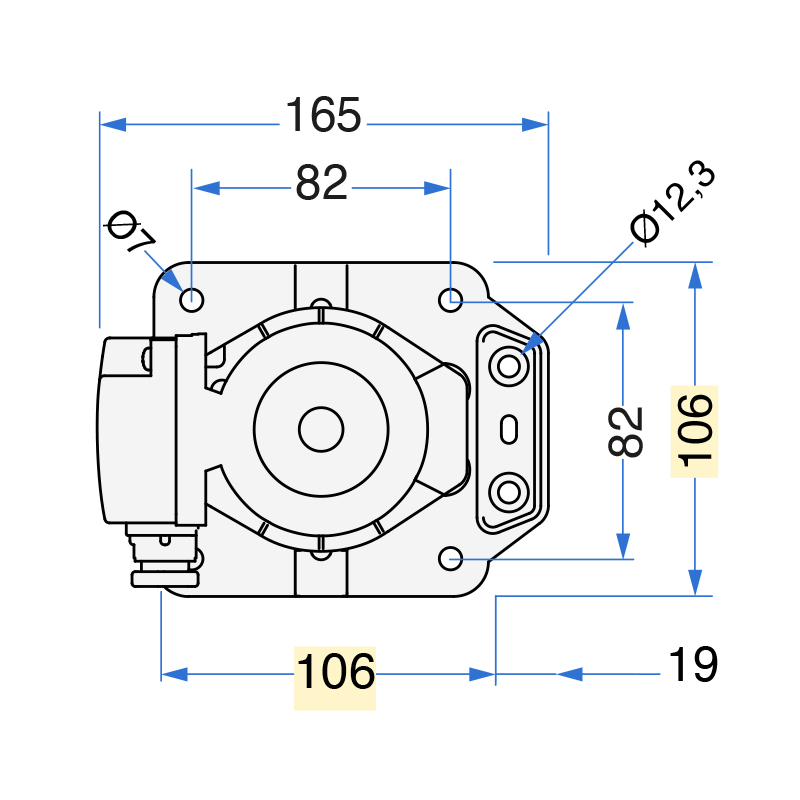

106×106 mm JG
Fixing plates

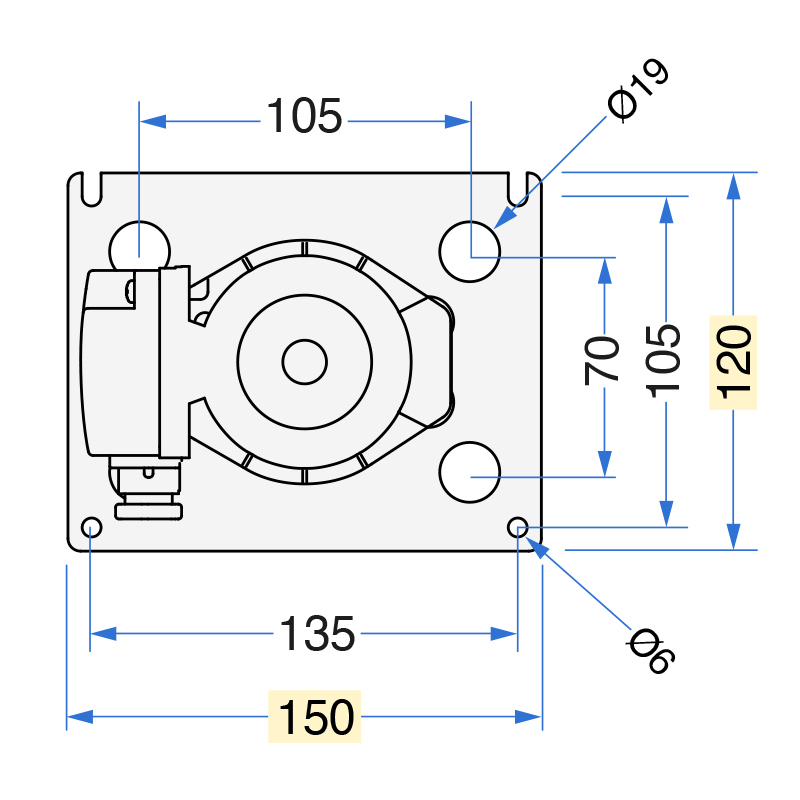

150×120 mm
Fixing plates
Available CABLE
BIPOLAR
IEC 370 “FELLER”
SCHUKO
AMP
More technical specifications:
Category: AGITATOR-PUMP with immersed vertical axis.
Windings: Single-phase motor. Insulation Class F.
Motor body: Overinjected PA66-30% glass fiber plastic shell.
Protection: IP 54 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: Ø 8 mm NSK, SKF or equivalent, in semi-rigid noise-damping silicone casing.
Motor shaft: AISI 303 INOX steel Ø 8 mm.
Fastening parts: INOX steel or corrosion-resistant materials.
Motor parts: Thermoplastic motor parts resistant to high temperature.
Cooling system: Water cooled pump.
Water connection: Pipe connection Ø 9,5/12,3 mm compatible with John Guest fittings.
Operation: Power supply 220-240 Volts – 24 hours a day non stop. Clean non drinkable water only.
Regulations: Complying with EN60335-2-41:2003/A2:2010 and WEEE/RoHs directives.
Note: PATENTED device. Read the instruction booklet for correct set up and use.
