SR-20
SR-20 series is a long-life reliable solution for your needs. Its robust aluminum design and the wide range of configurations available makes it the perfect choice when great performances are required.
Available FIXING PLATES

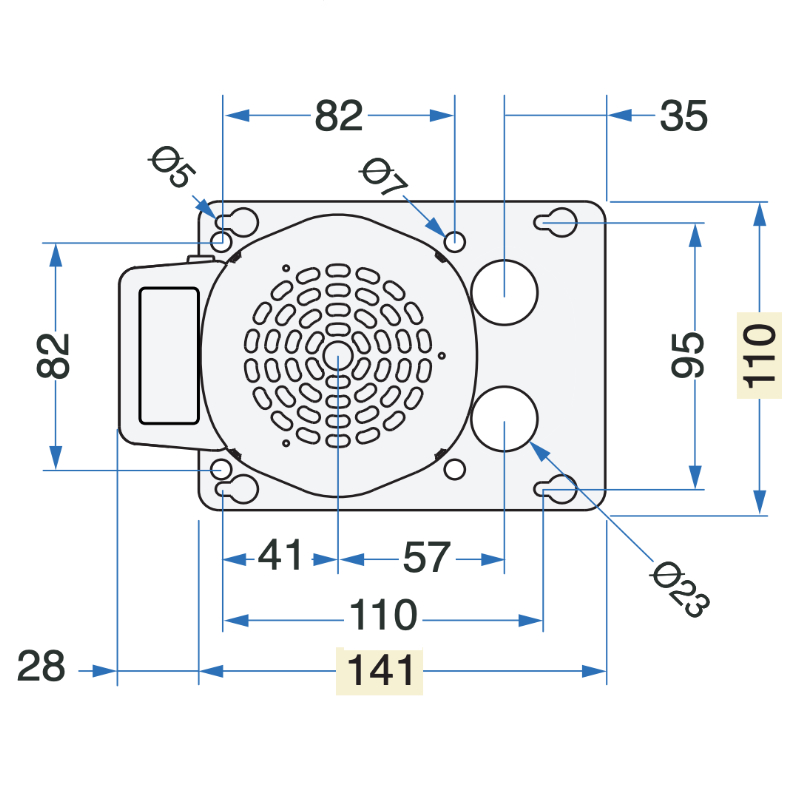

141×110 mm
Fixing plates

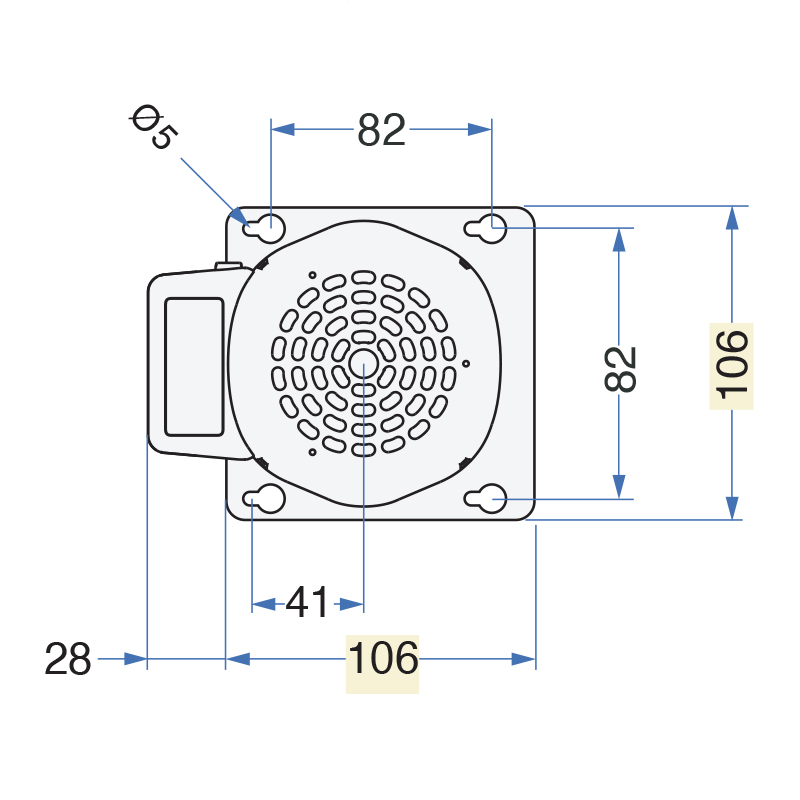

106×106 mm
Fixing plates
108×129 mm
Fixing plates
Available CABLE
BIPOLAR
IEC 370 “FELLER”
SCHUKO
More technical specifications:
Category: Classic AGITATOR.
Windings: Single-phase motor. Insulation Class F.
Motor body: Extruded aluminium casing.
Protection: IP 44 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: NSK and SKF (long-life) self-lubricant bearings or equivalent, in semi-rigid noise-damping housings.
Motor shaft: AISI 303 INOX steel.
Fastening parts: INOX steel or corrosion-resistant materials.
Motor parts: Thermoplastic motor parts resistant to high temperature.
Cooling system: Air cooled pump with a suction speed of 3,1 m/s.
Operation: Power supply 220-240 Volts – 24 hours a day non stop. Clean non drinkable water only.
Regulations: Complying with EN60335-2-41:2003/A2:2010 and WEEE/RoHs directives.
Note: Read the instruction booklet for correct set up and use.
