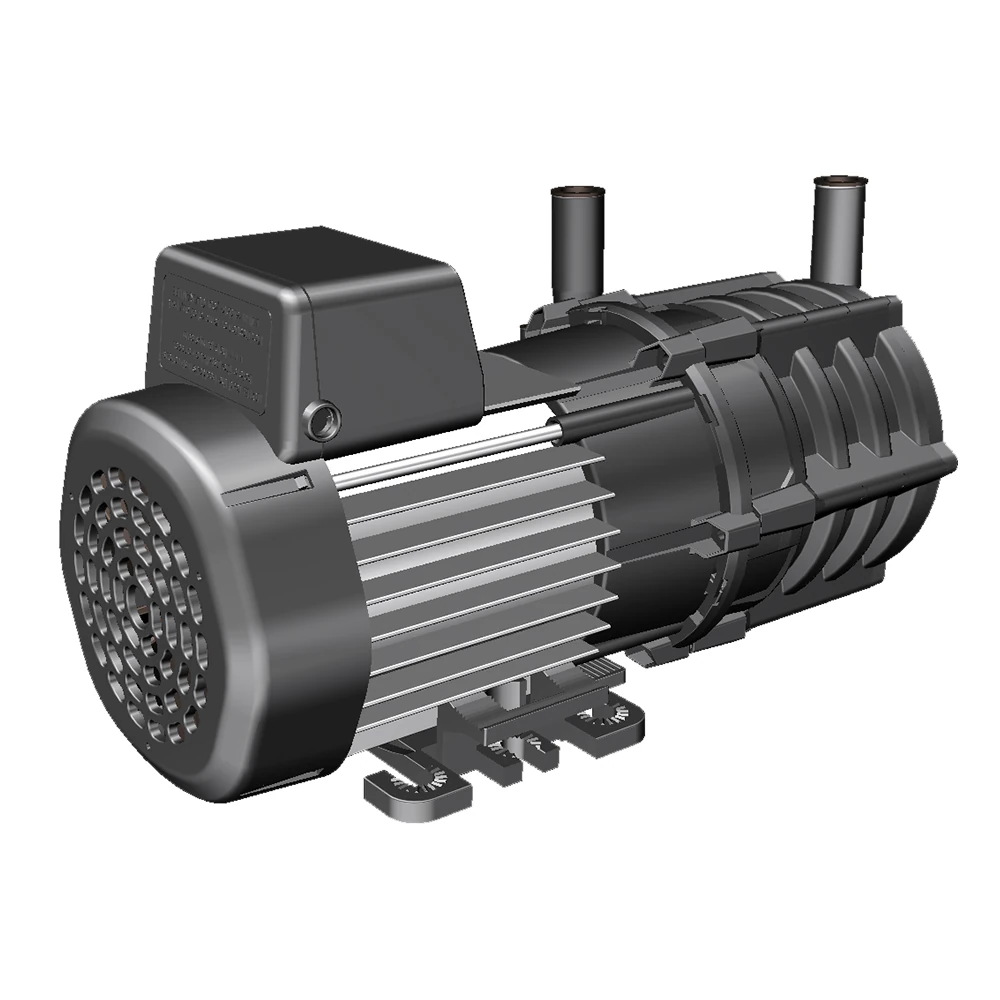

MMP
Need to easily manage assistance to your customers on site and cut the high cost of interventions?

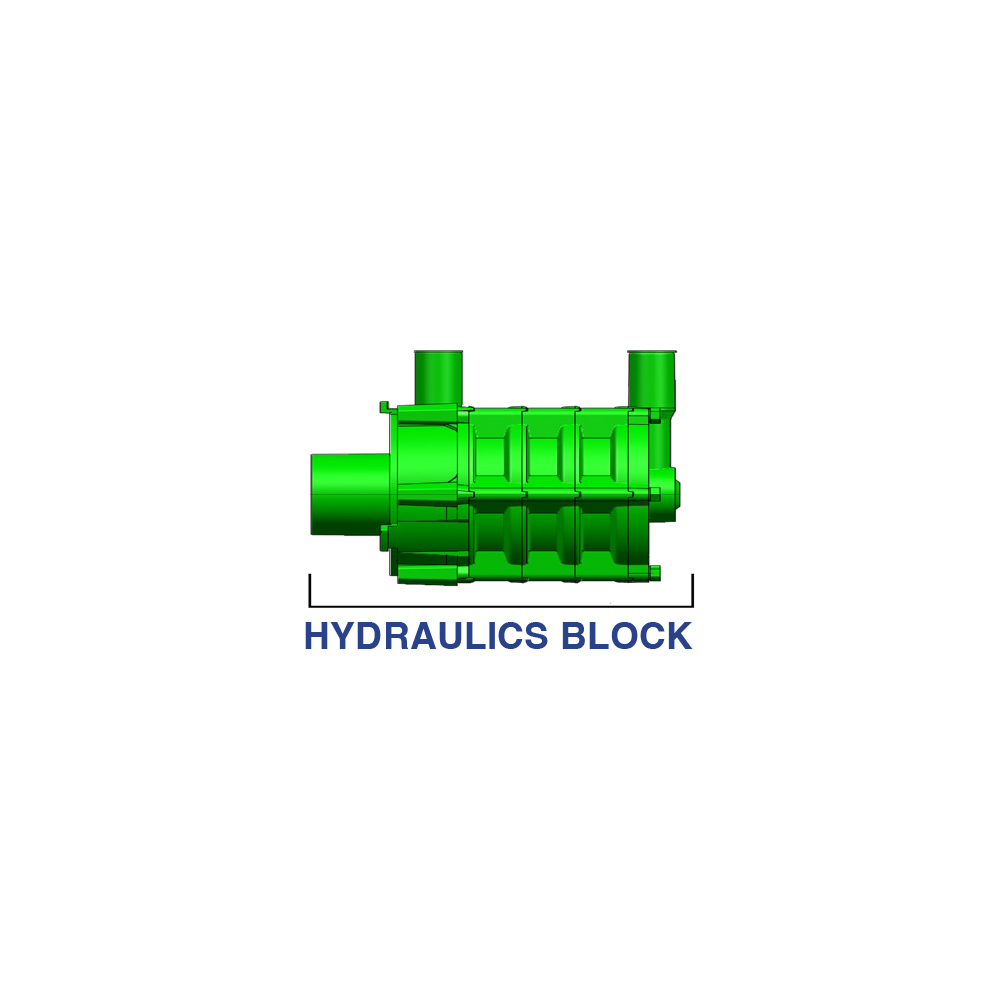

Forget about repair issues and complex operations thanks to our MMP modular design. Enjoy the advantages of easily managing service from remote just sending spare parts.

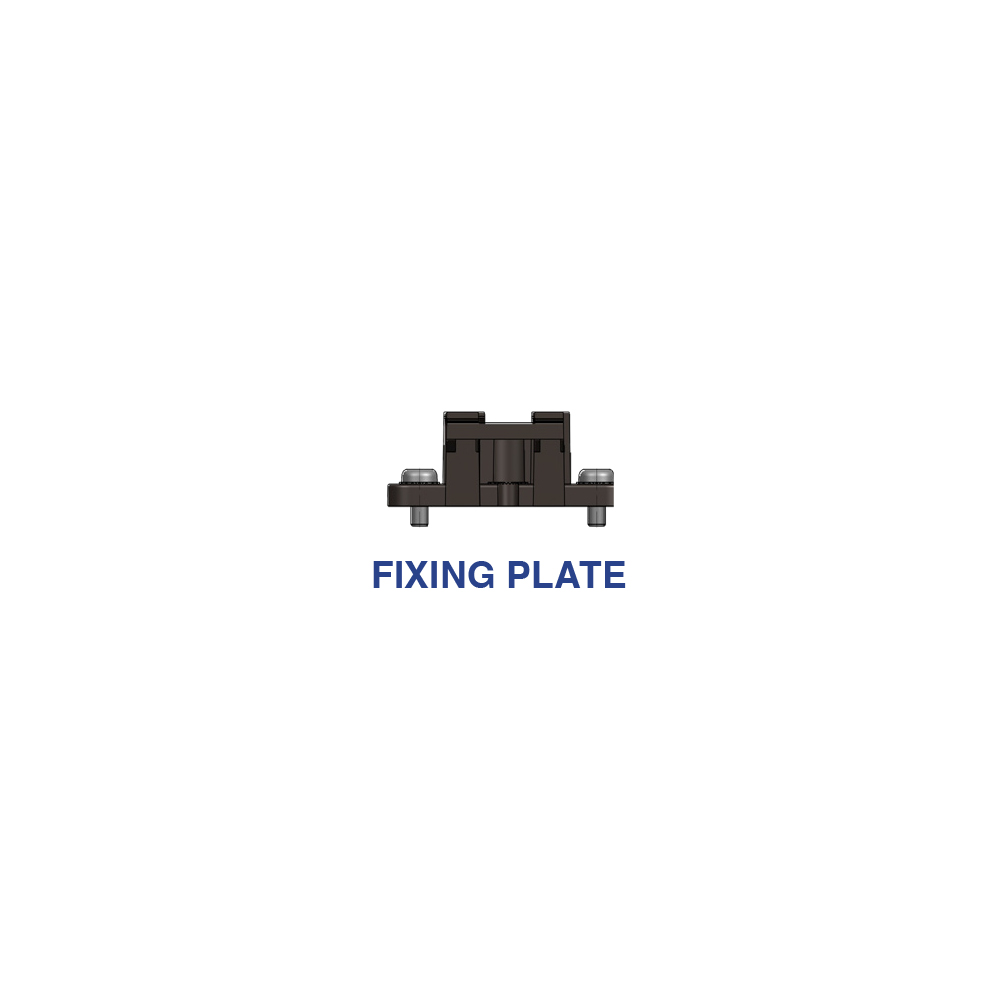

Available FIXING PLATES

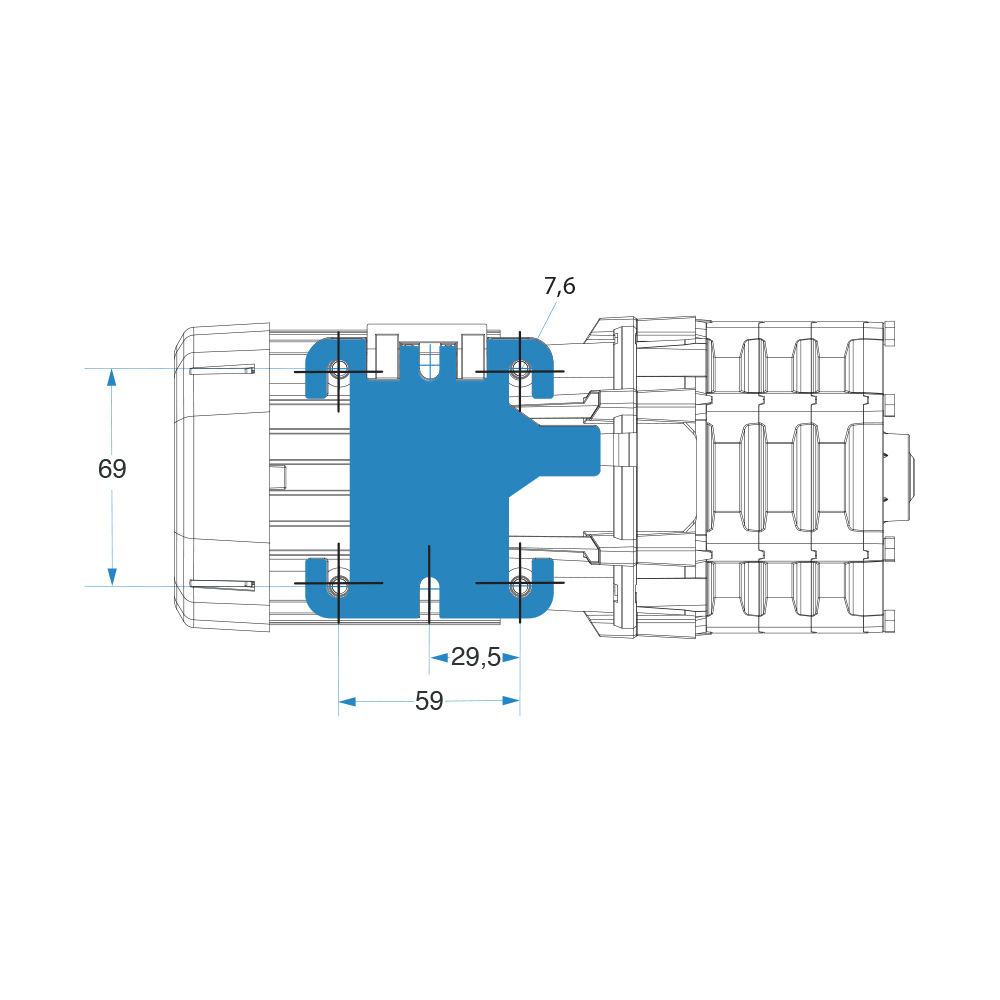

69×59 mm
Fixing plates
Available CABLE
IEC 370 “FELLER”
More technical specifications:
Category: Magnetically coupled centrifugal circulator.
Windings: Single-phase motor. Insulation Class F.
Motor: Extruded aluminium casing.
Protection: IP 44 ingress protection rating. IP 55 available on demand.
Safety: Built-in thermal motor protection system.
Ball bearings: Ø 8 mm (12 mm optional) NSK /SKF or equivalent, in semi-rigid noise-damping silicone casing.
Motor shaft: AISI 303 INOX steel Ø 8 mm.
Fastening parts: INOX steel or corrosion-resistant materials.
Motor parts:Thermoplastic motor parts resistant to high temperature.
Cooling system: Air cooled pump with a suction speed of 3,1 m/s.

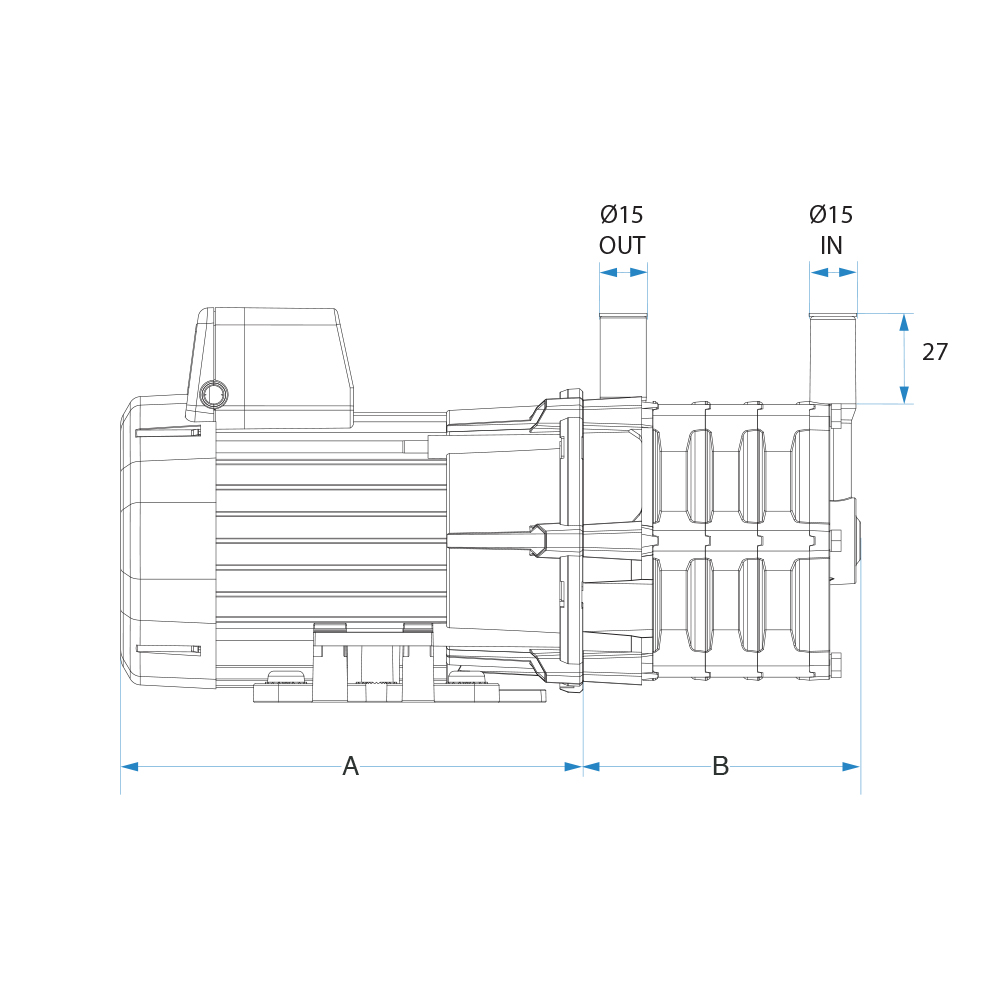

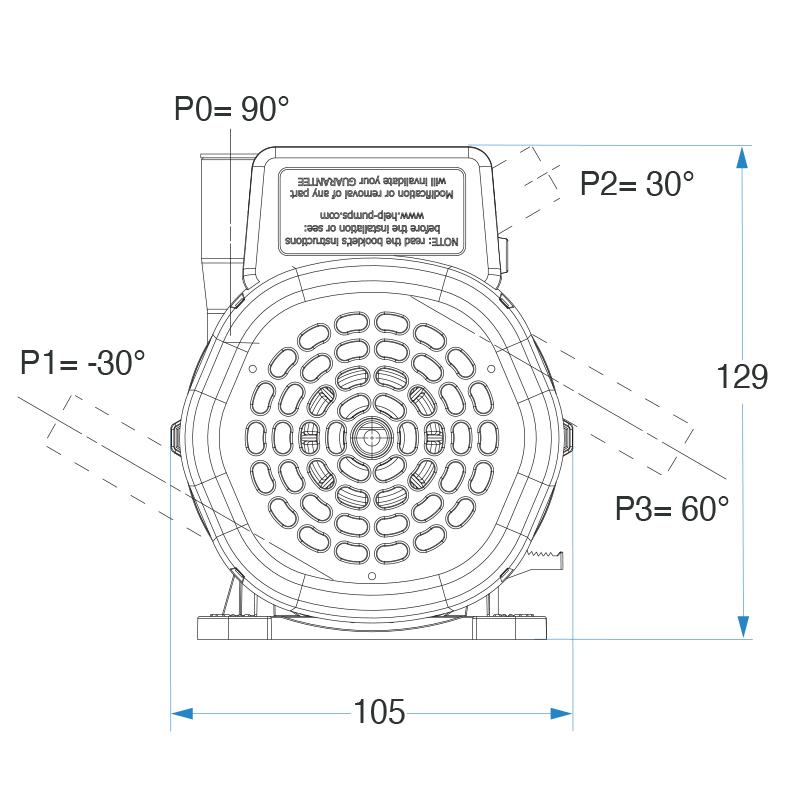

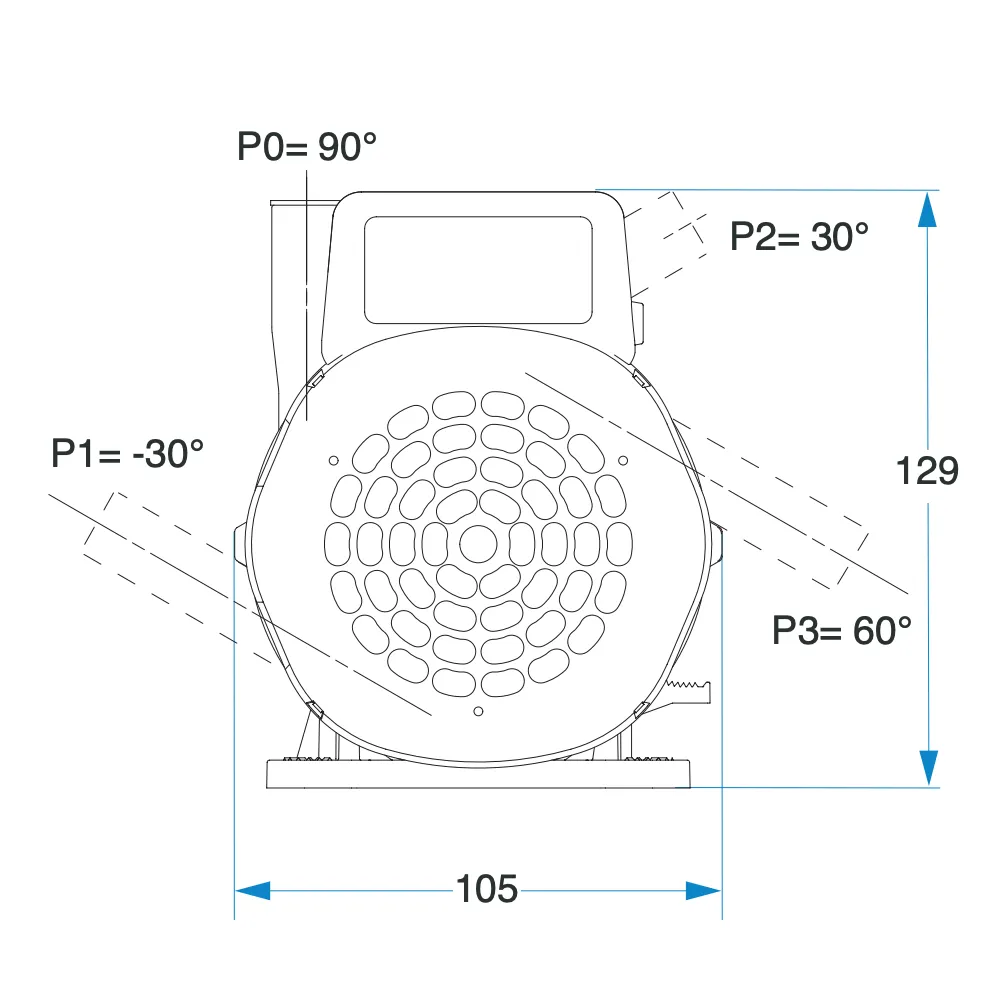

Water connection: Preset swiveling/adjustable discharge outlet, with John Guest fittings.
Operation: Power supply 220-240 Volts – 24 hours a day non stop. Clean non drinkable water only max 60° C.
Regulations: Complying with EN60335-2-41:2003/A2:2010 and WEEE/RoHs directives.
Note: PATENT pending. Read the instruction booklet for correct set up and use.
All models in the range are designed for use with pure water. They are NOT self priming and DO NOT run dry. Solids will cause jamming.
Abrasive will reduce pumps life and invalidate the warranty.
