ESP series
ESP series is an agitator pump solution dedicated to multiple-tower installations.
It adds, to the long life reliability of the ST series, the possibility to connect simultaneously up to six cooling circuits using just one pump.
Available FIXING PLATES

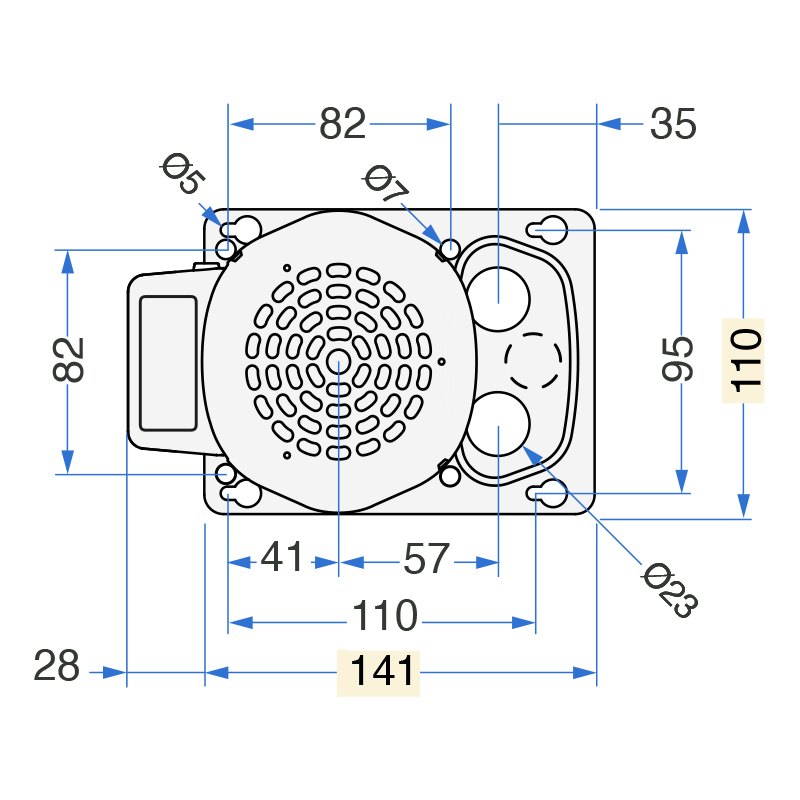

141×110 mm
Fixing plates

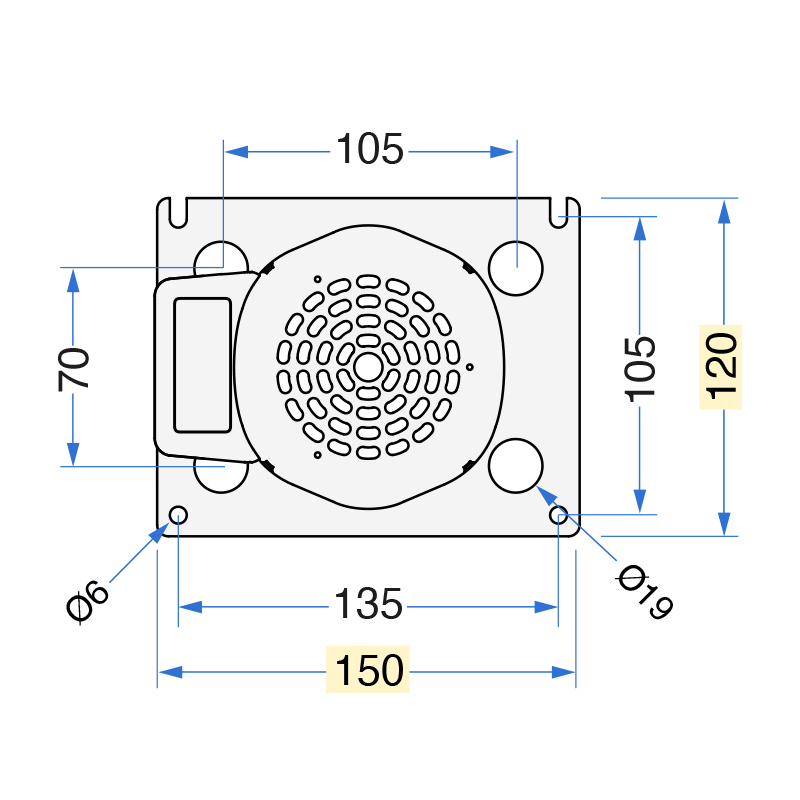

150×120 mm
Fixing plates
Available CABLE
BIPOLAR
IEC 370 “FELLER”
SCHUKO

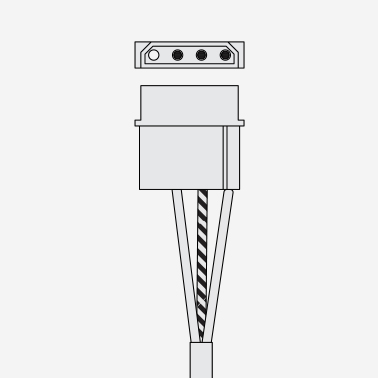

AMP

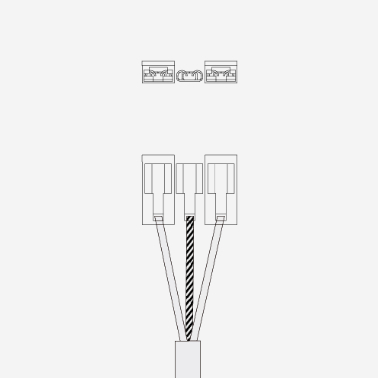

FASTON PLUG
More technical specifications:
Category: AGITATOR-PUMP with immersed vertical axis.
Windings: Single-phase motor. Insulation Class F.
Motor body: Extruded aluminium casing.
Protection: IP 44 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: Ø 8 mm NSK, SKF or equivalent, in semi-rigid noise-damping silicone casing.
Motor shaft: AISI 303 INOX steel Ø 8 mm.
Fastening parts: INOX steel or corrosion-resistant materials.
Motor parts: Thermoplastic motor parts resistant to high temperature.
Cooling system: Air cooled pump with a suction speed of 2,2 m/s.
Water connection: DOUBLE (ESP-7.2) or TRIPLE (ESP-7.3) connection Ø 9,5/12,3mm John Guest fittings.
Operation: Power supply 220-240 Volts – 24 hours a day non stop. Clean non drinkable water only.
Regulations: Complying with EN60335-2-41:2003/A2:2010 and WEEE/RoHs directives.
Note: Italian PATENTED component installed inside. Read the instruction booklet for correct set up and use.
