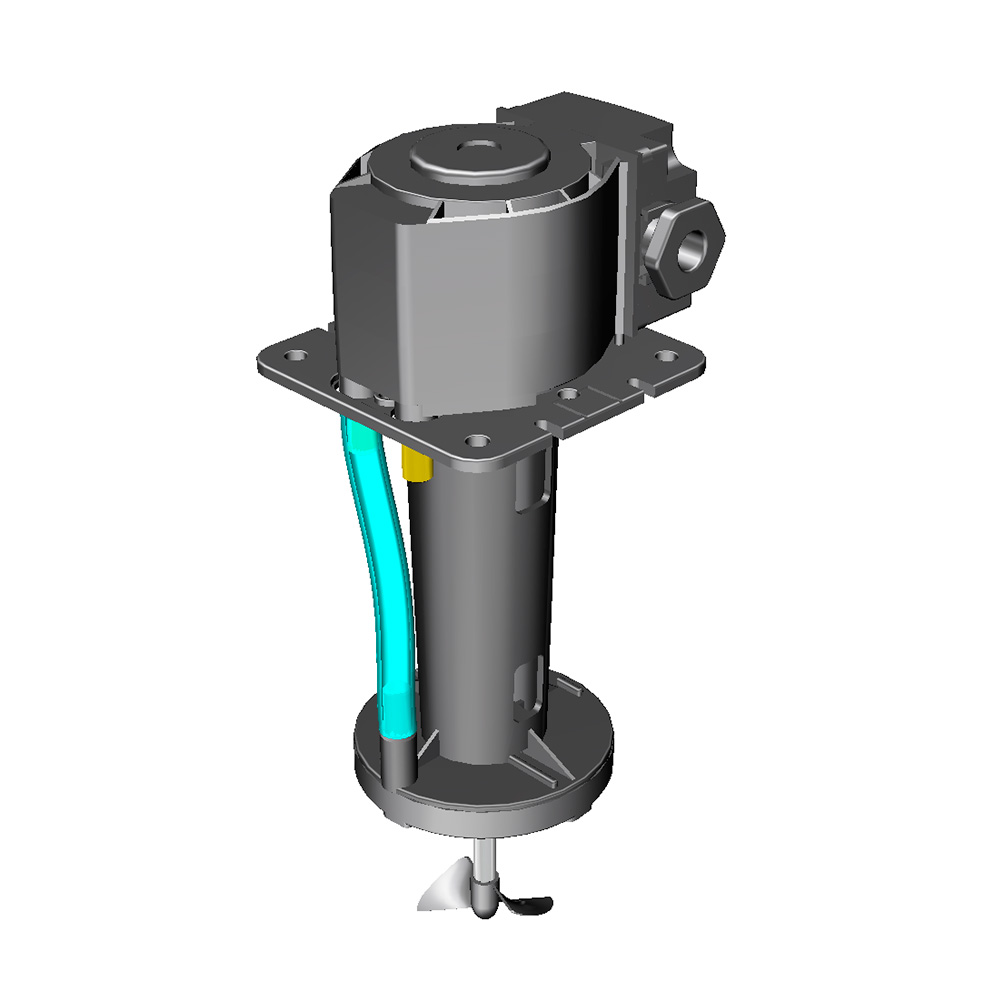

RIO series
RIO series is a very compact solution suitable for poorly ventilated installations. Its encapsulated design grants protection from dust and dampness even in the most particular applications. The 60Hz version is produced with UL compliant materials.
Available FIXING PLATES

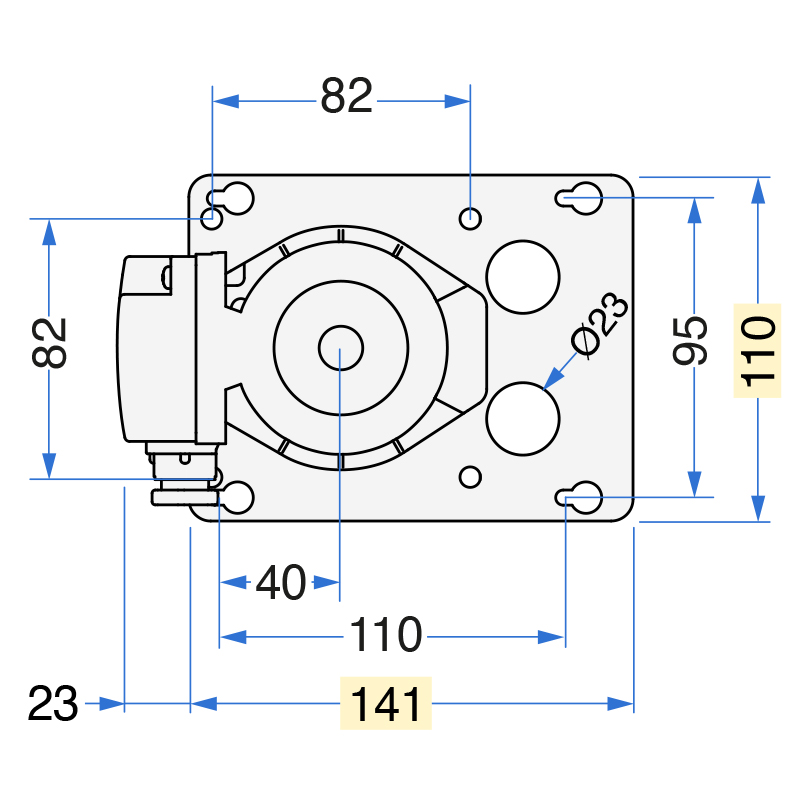

141×110 mm
Fixing plates

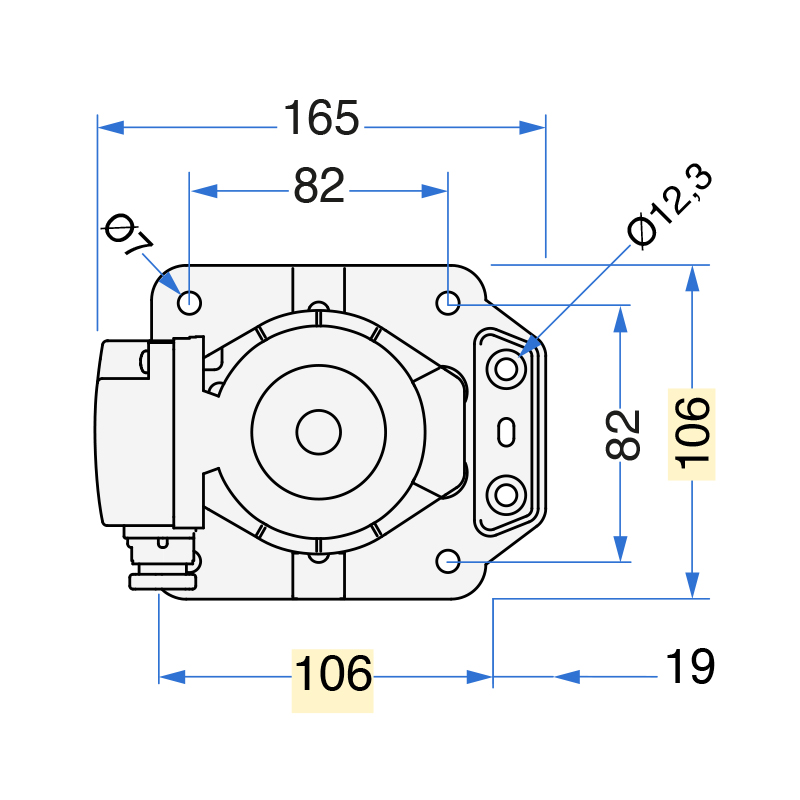

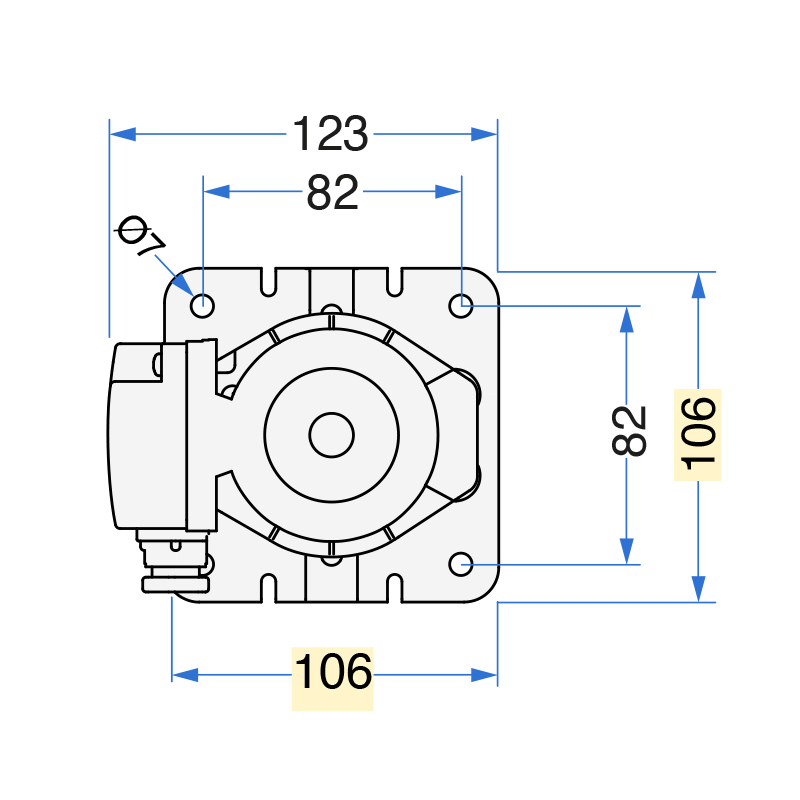

106×106 mm
Fixing plates
106×106 mm JG
Fixing plates

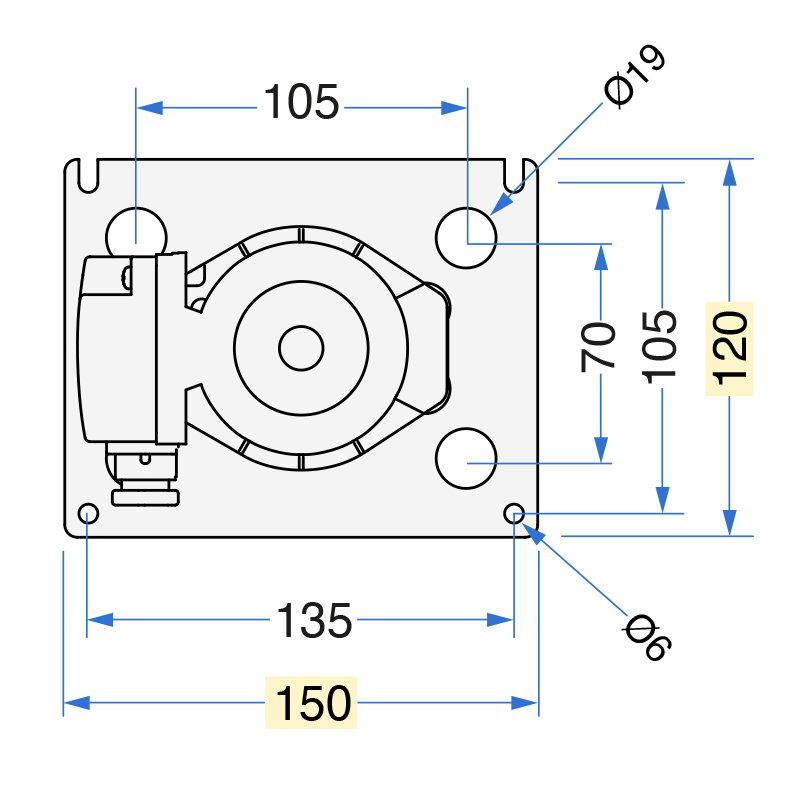

150×120 mm
Fixing plates
Available CABLE
BIPOLAR
IEC 370 “FELLER”
Made with UL compliant materials
More technical specifications:
Category: AGITATOR-PUMP with immersed vertical axis.
Windings: Single-phase motor. Insulation Class F.
Motor body: Overinjected PA66-30% glass fiber plastic shell.
Protection: IP 54 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: Ø 8 mm NSK, SKF or equivalent, in semi-rigid noise-damping silicone casing.
Motor shaft: AISI 303 INOX steel Ø 8 mm.
Fastening parts: INOX steel or corrosion-resistant materials.
Motor parts: Thermoplastic motor parts resistant to high temperature.
Cooling system: Water cooled pump.
Water connection: Pipe connection Ø 9,5/12,3 mm compatible with John Guest fittings.
Operation: Power supply 110-115 or 220 Volts – 24 hours a day non stop. Clean non drinkable water only.
Regulations: Complying with EN60335-2-41:2003/A2:2010 and WEEE/RoHs directives.
Note: PATENTED device. Read the instruction booklet for correct set up and use.
