NAG-20
NAG-20 is a versatile Energy Saving agitator suitable for small chillers where compact size is required and there is little ventilation space. Thanks to many available configurations it easily fits different installations.
Available FIXING PLATES

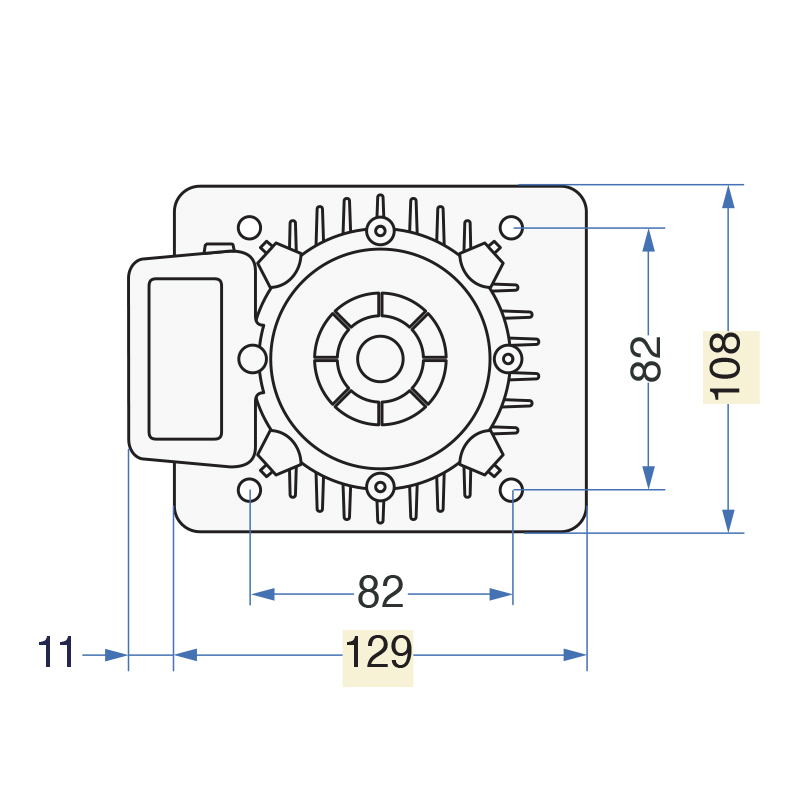

108×129 mm
Fixing plates

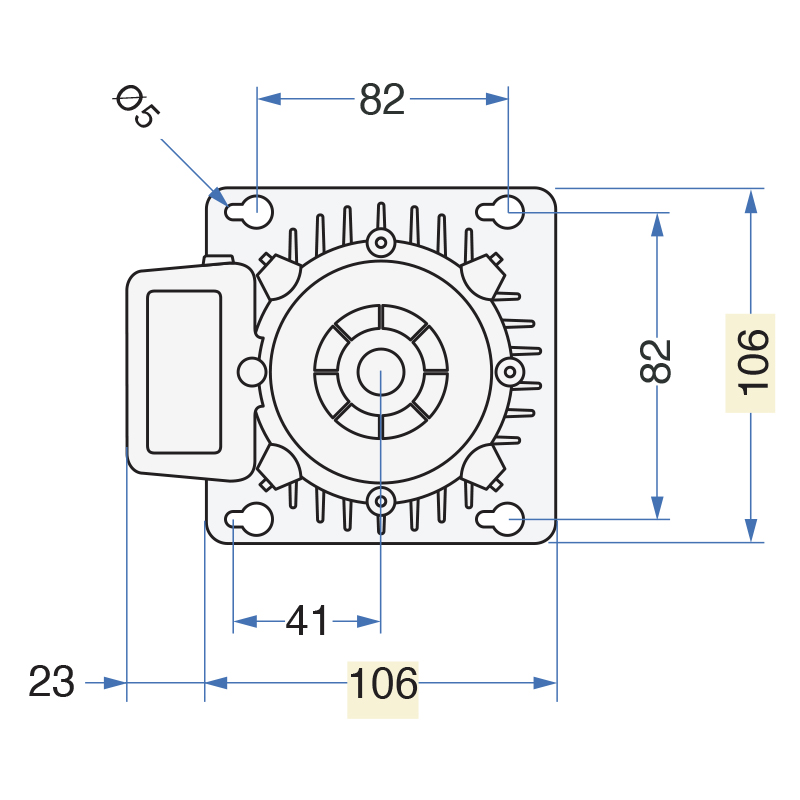

106×106 mm
Fixing plates
Available CABLE
BIPOLAR
IEC 370 “FELLER”
More technical specifications:
Category: Energy saving AGITATOR.
Windings: Single-phase motor. Insulation Class F.
Motor body: Extruded aluminium casing.
Protection: IP 44 ingress protection rating.
Safety: Built-in thermal motor protection system.
Ball bearings: NSK and SKF (long-life) self-lubricant bearings or equivalent, in semi-rigid noise-damping housings.
Motor shaft: AISI 303 INOX steel.
Fastening parts: INOX steel or corrosion-resistant materials.
Motor parts: Thermoplastic motor parts resistant to high temperature.
Cooling system: This device does not require a fan.
Operation: Power supply 230 Volts – 24 hours a day non stop. Clean non drinkable water only.
Regulations: Complying with EN60335-2-41:2003/A2:2010 and WEEE/RoHs directives.
Note: Read the instruction booklet for correct set up and use.
